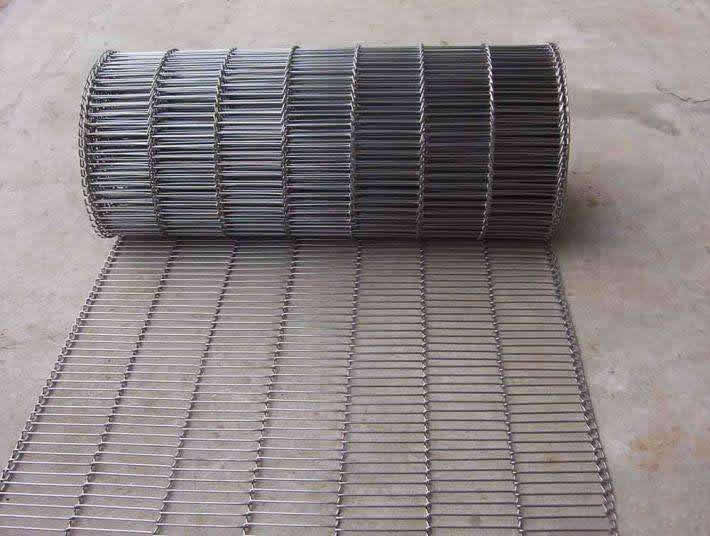

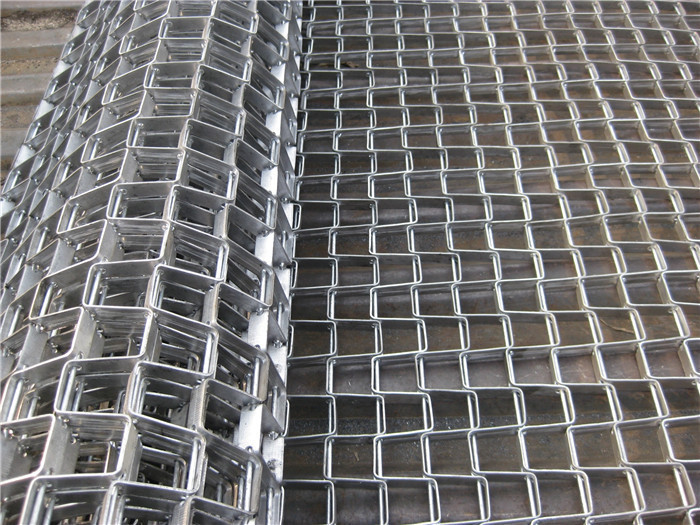

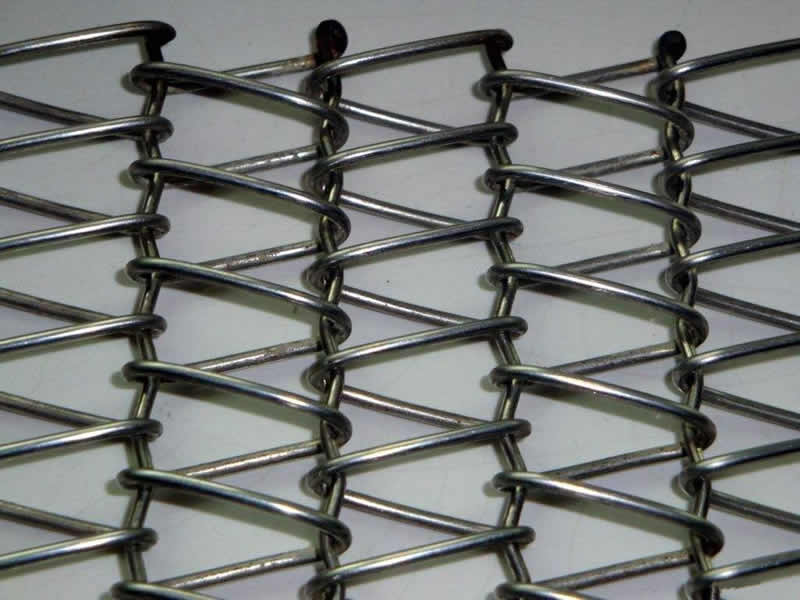

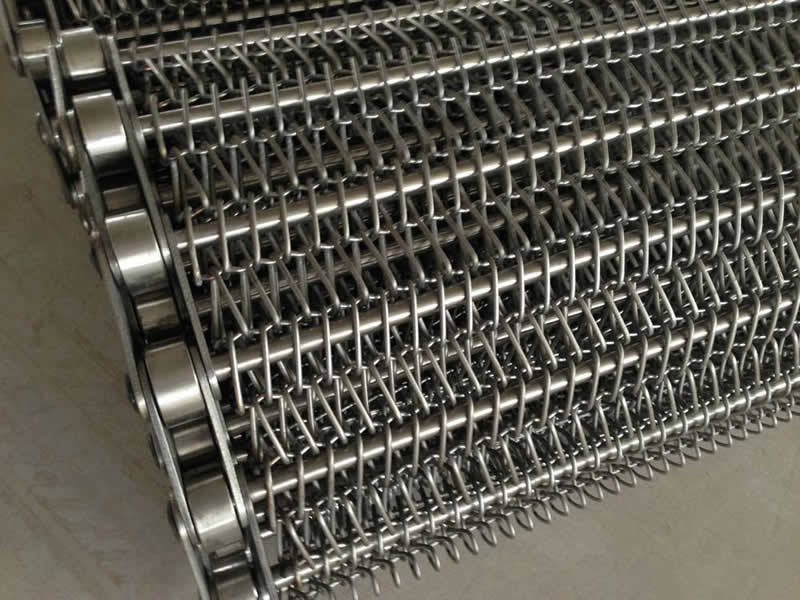

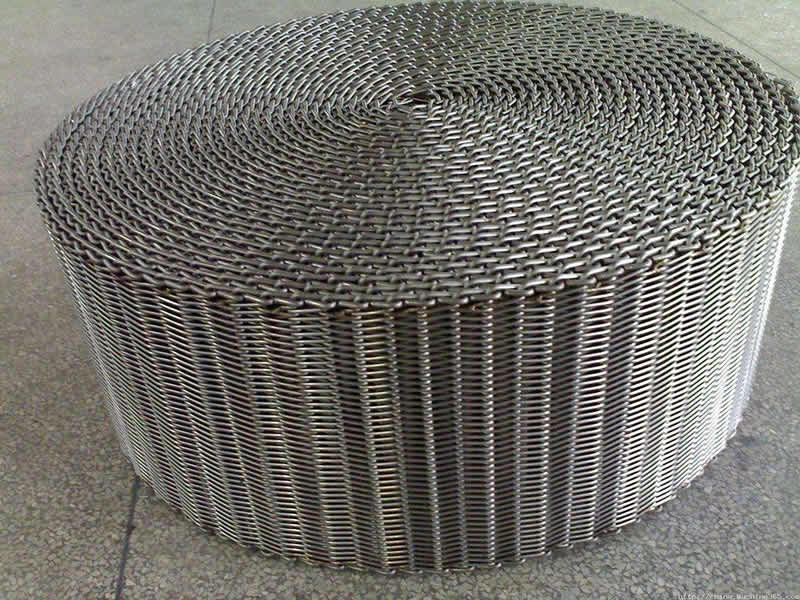

Made of stainless steel of various kinds, or zinc-plating iron wire plaited into mesh of all shapes as required. It can be applied for assembling lines.
Payments:This supplier also supports L/C,T/T,Western Union,MoneyGram payments.
Made of stainless steel of various kinds, or zinc-plating iron wire plaited into mesh of all shapes as required. It can be applied for assembling lines.
Materials: Stainless steel wire, stainless iron wire, stainless iron wire middle and low carbon steel wire galvanized iron wire nickel chromium wire iron chromium aluminum wire polyester wire etc.
Weaving and characteristics: The shape of organization structure including ordinary weaving reinforce weaving, parts ordinary weaving etc.
Uses: used wide in oil metallurgy machine of food processing pharmacy glass print special equipments of circuit board etc professions.
| Weaving method | Diam - eter /mm | Width | Length | Weight kg/m2 | Weaving method | Diameter /mm | Width | Length | Weight kg/m2 |
| R RR | 3.5/4 | 25 | 29 | 8 | B | 3.5/3.5 | 40 | 33 | 10.8 |
| R RR | 2.8/2.8 | 50 | 46 | 9.3 | B | 2.8/2.8 | 40 | 33 | 7 |
| R RR | 2.8/2.8 | 60 | 60 | 15 | B | 4.5/5 | 60 | 33 | 29 |
| R RR | 1.6/2.0 | 80 | 80 | 5.4 | B | 4/4 | 60 | 52 | 31 |
| R RR | 1.4/1.6 | 100 | 157 | 6.2 | B | 2.8/2.8 | 60 | 52 | 15.3 |
| R RR | 1.0/1.2 | 157 | 156 | 6 | B | 2/2 | 60 | 52 | 6.5 |
| B(S) | 3.5/6 | 77 | 56 | 33 | B | 3.5/3.5 | 80 | 72 | 27 |
| B(S) | 2.8/3.5 | 125 | 73 | 31.7 | B | 2.8/2.8 | 80 | 72 | 17.3 |
| B(S) | 1.6/1.8 | 200 | 125 | 17 | B | 2/2 | 90 | 100 | 10.4 |
| B(S) | 1/1 | 250 | 278 | 11.6 | B | 1.2/1.2 | 100 | 92 | 3.8 |
| DR | 2.8/2.8 | 40 | 40 | 6.9 | B | 2.8/2.8 | 118 | 105 | 22 |
| DR | 2/2 | 50 | 50 | 4.5 | B | 1.6/1.6 | 118 | 105 | 9.9 |
| DR | 1.6/1.6 | 100 | 100 | 6.5 | B | 2.8/2.8 | 138 | 60 | 27 |
| DR | 1.2/1.2 | 125 | 125 | 4.2 | B | 2/2 | 138 | 125 | 19.2 |
| DR | 0.9/1.0 | 125 | 125 | 2.9 | B | 1.6/1.6 | 138 | 125 | 14 |
| C | 1.6 | 84 | 63 | 3.1 | B | 1.6/1.6 | 158 | 158 | 13.4 |
| C | 1.2 | 100 | 150 | 2.7 | B | 1.2/1.2 | 158 | 158 | 8.6 |
| C | 0.9 | 153 | 158 | 2.3 | B | 0.9/0.9 | 158 | 158 | 4.3 |
