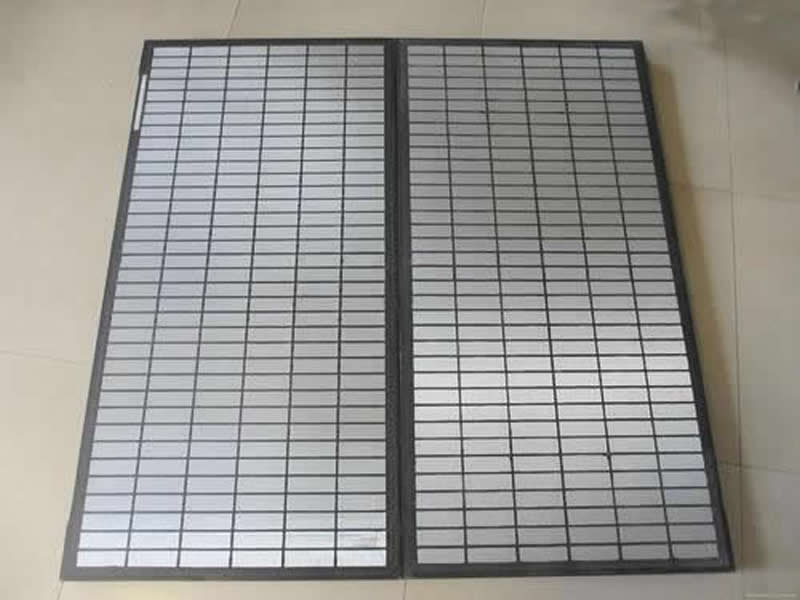

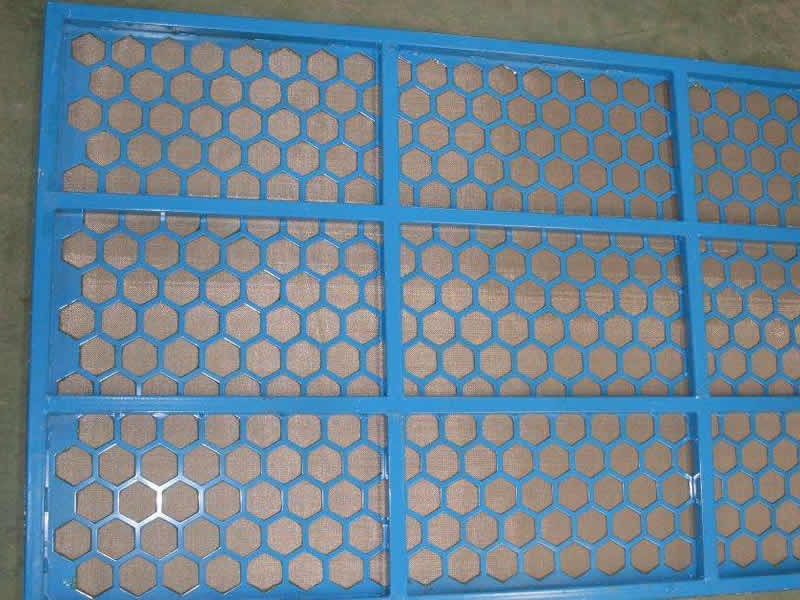

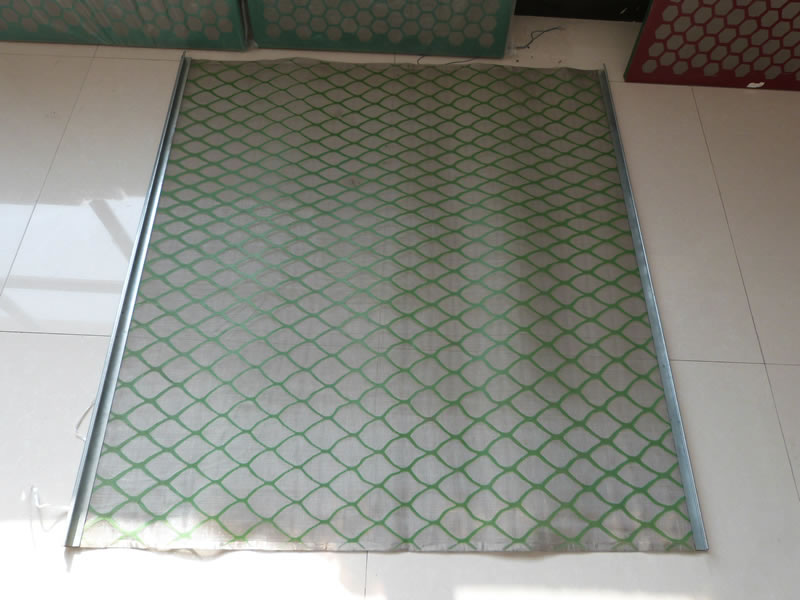

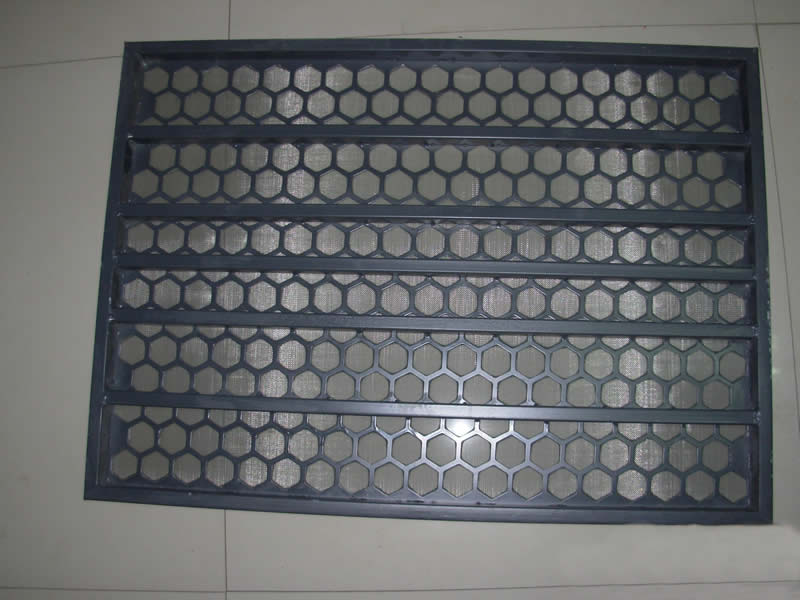

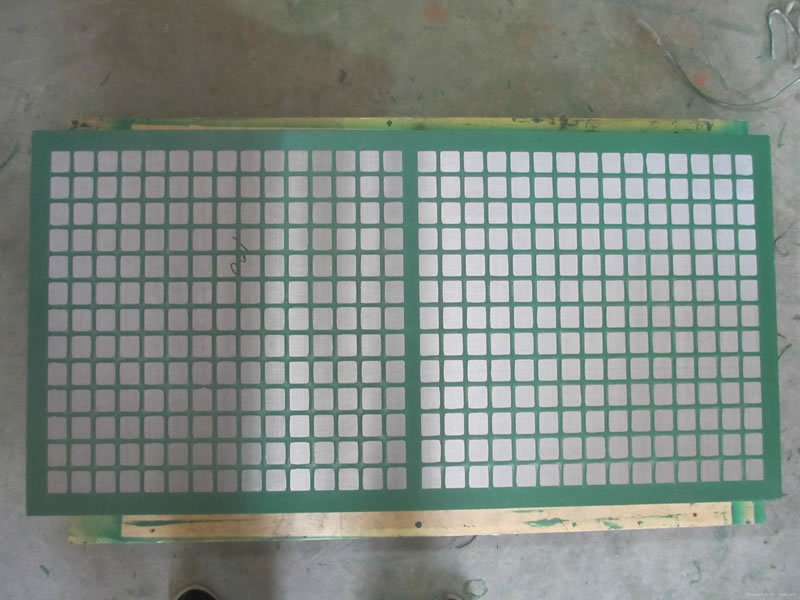

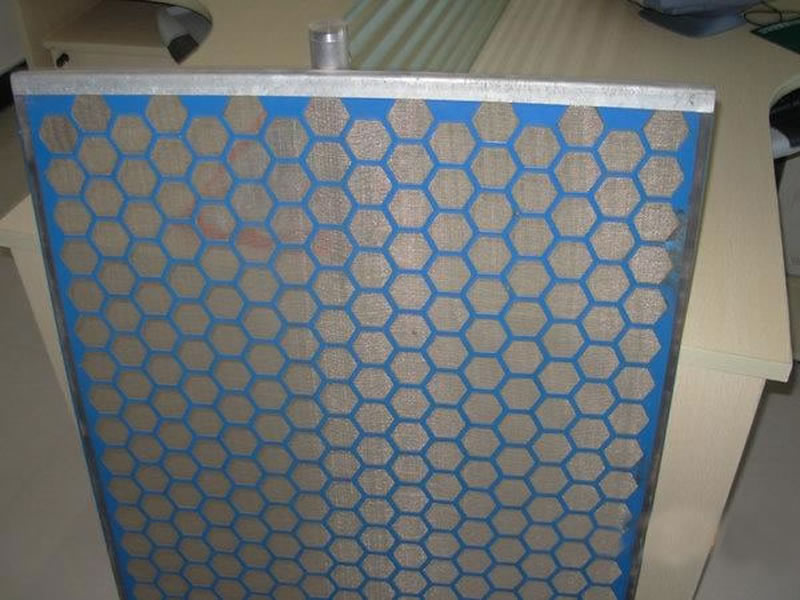

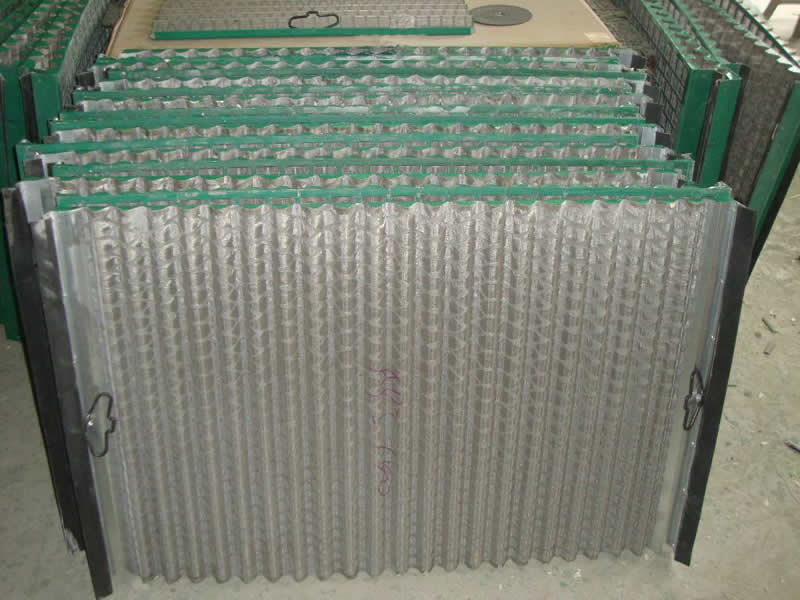

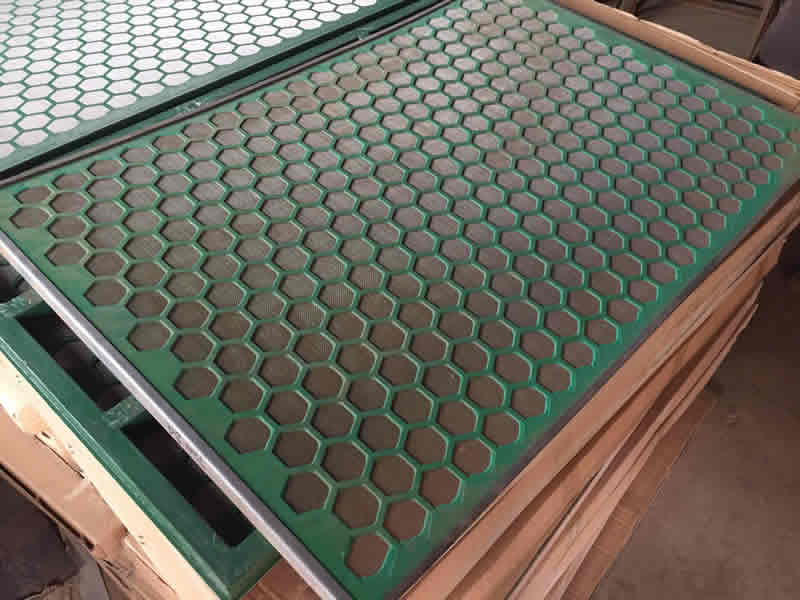

The product is the damageable components of the vibrating equipment,the interface was painted felt solid between metal plate and screen cloth,it shapes the felt layer,so the sievesd cloth and metal plate become s body
Payments:This supplier also supports L/C,T/T,Western Union,MoneyGram payments.
The product is the damageable components of the vibrating equipment,the interface was painted felt solid between metal plate and screen cloth,it shapes the felt layer,so the sievesd cloth and metal plate become s body,it make up the full felt solid napped component.
The main characteristic:the usage cost is low,conviebt,to dismantle and install long usage life,It is the ideal fittings of the vibrating sieves.
“De You”brand oji vibrating sieving mesh,high efficiency double layer felt vibrating sieving mesh,GZS—G4type high frequency frame sieving mesh,new style sieving mesh,GZS—1 high frequency padding mesh,waving high frequency double layre vibrating sieving mesh,etc.They were sold to the oil field around the world.
Outside size: 1050×695mm
Mesh: 12 (mesh) —300 (mesh)
Oil vibrating sieving mesh Name: oil vibrating siveing mesh.
Material: stainless steel wire mesh,plastic plain wire mesh,galvanized plate.
Characteristics: alkale-resisting,heat-resisting,wear-resisting,etc.
Uses: used in oil vibrating sieving mesh.
The introduction of products:
Material: 1Gr18Ni9Ti or 0Gr18Ni9Ti
The Specification of sieving mesh: 12(mesh)-300(mesh).
| Vibrating Screen Mesh | 48-30D | 40mesh/20meshx700x1050 |
| 80mesh/20meshx700x1050 | ||
| 120mesh/30meshx700x1050 | ||
| 160mesh/40meshx700x1050 | ||
| 40mesh-200mesh for this type as above | ||
| Wave Type Screen | 48-30D | 20mesh/12meshx700x1050 |
| 40mesh/18mesh/12meshx700x1050 | ||
| 100mesh/40mesh/20meshx700x1050 | ||
| 160mesh/60mesh/20meshx700x1050 | ||
| 200mesh/60mesh/20meshx700x1050 | ||
| 20mesh-200mesh for this type as above | ||
| Three tier conglutination screen mesh | 40mesh/20mesh/12meshx715x1215 | |
| 80mesh/40mesh/12meshx715x1215 | ||
| 120mesh/40mesh/20meshx715x1215 | ||
| 180mesh/60mesh/20meshx715x1215 | ||
| 20mesh-200mesh for this type as above | ||
| Plate conglutination screen mesh | 40mesh/12meshx900x1146 | |
| 80mesh/20meshx900x1146 | ||
| 140mesh/20meshx900x1146 | ||
| 20mesh-160mesh for this type as above | ||
| Vibrating sieving mesh | NS-115/2 | 60mesh/20meshx1150x1000 |
| 100mesh/20meshx1150x1000 | ||
